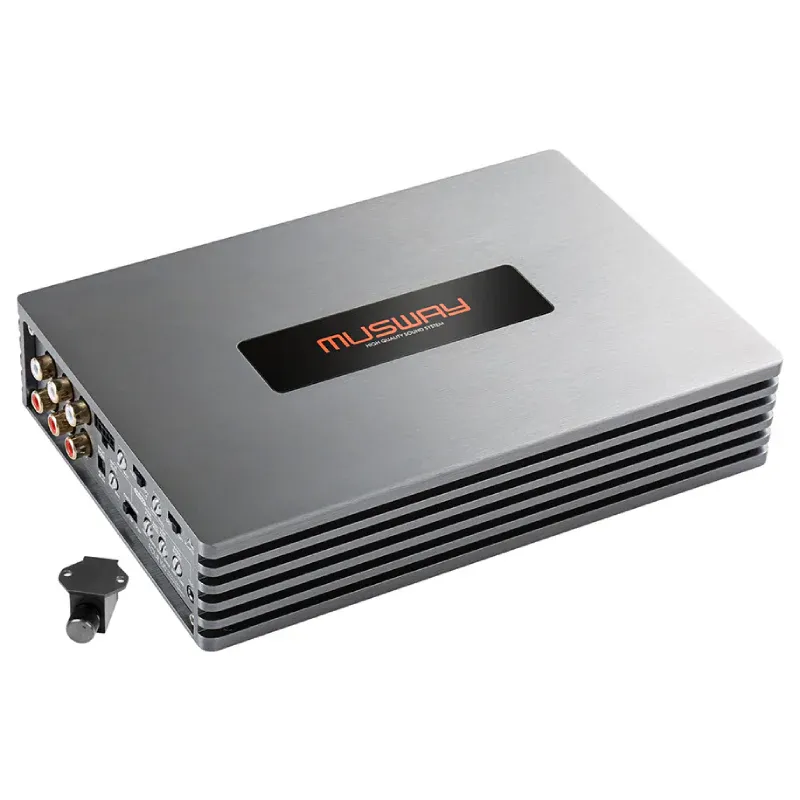

Product Overview

FOUR.100 Product Overview
Start-Stop ready
EPS (Intelligent High Level Input Error Protection System)
Utilizes 4-fold laminated circuit boards that allows for small size and effectively suppresses EMI (RF) interference which is a must for full range Class D Amplifiers. Passes the difficult EMI European standards.
High- and Low-Level Inputs
RCA (Low Level) output.
Brushed aluminum heat sink and end panels
Auto Turn On via DC Offset or Signal Sensing
Remote level controller is included in the box

Product Power

• OUTPUT POWER RMS @ 13.8v:
4 x 120w @ 4 Ohms
4 x 200w @ 2 Ohms
2 x 400w @ 4 Ohms bridged
• OUTPUT POWER RMS @ 14.4v:
4 x 131w @ 4 Ohms
4 x 218w @ 2 Ohms
2 x 435w @ 4 Ohms bridged

Product Specifications

Product Specifications:
• Frequency Range -3dB: 4-39000 Hz
• Damping Factor: 300
• S/N ratio: > 107 dB
• THD+N: < 0.02%
• Input Sensitivity
• 5-0.2V
• Channel 1/2
• Crossover Modes: Full - HP-Copy
• High Pass Filter: 50 - 5000 Hz
• Channel 3/4
• Crossover Modes: Full - HP - LP/BP
• High Pass Filter: 10 - 500 Hz
• Low Pass Filter: 50 - 5000 Hz
• Bass Boost: 0 - 12 dB @ 45 Hz
• Start-stop capability: 8.5V
• High Level Input with EPS : Yes
• Auto Turn On: Via DC or Signal
• Fuse Rating: 1 x 70A (external)
• Dimensions: 220 x 45 x 150 mm
