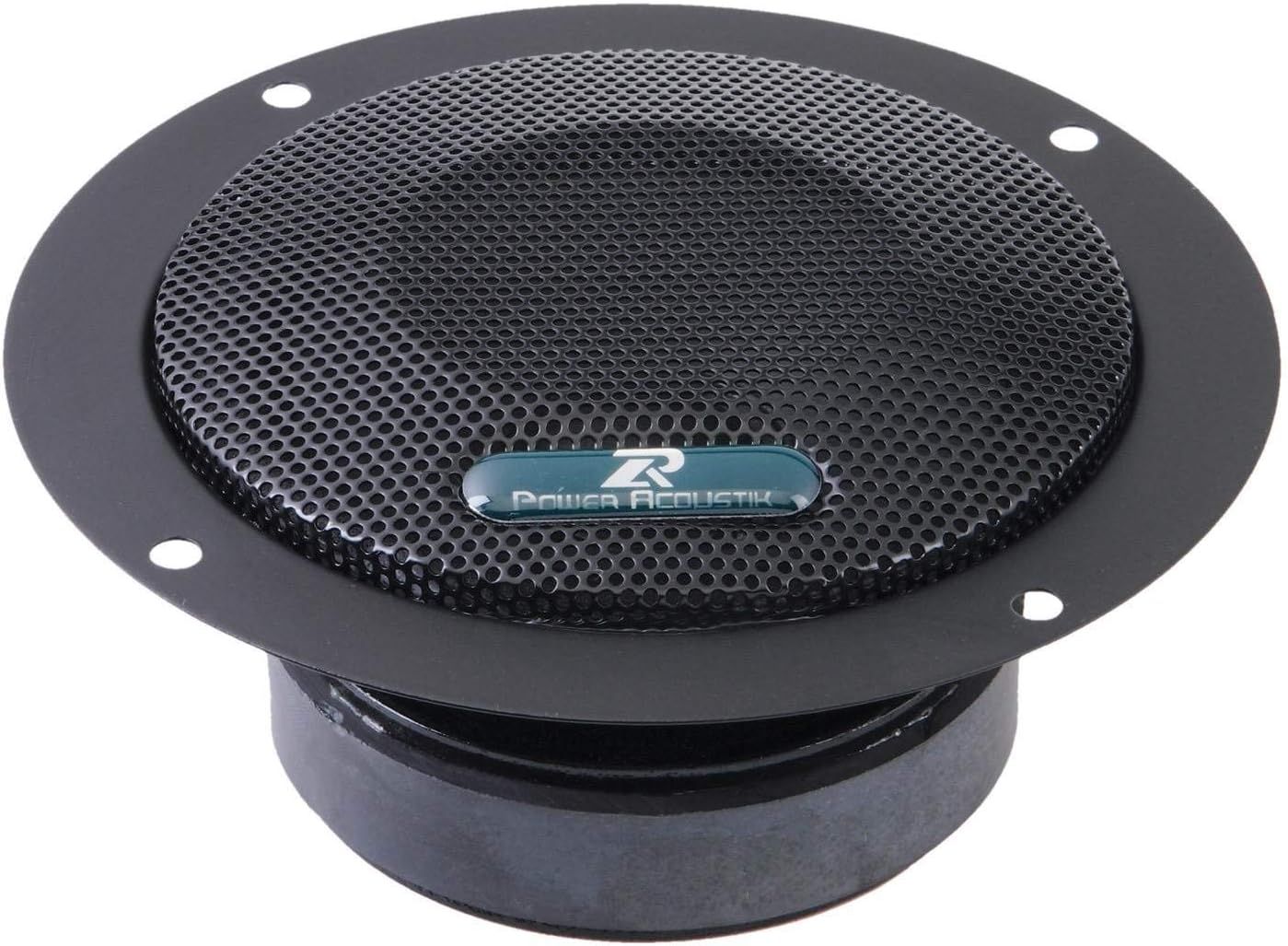

Power Acoustik XPS‑104 – XPS Series 4″ Midrange Speaker (4 Ohm, 300W Peak)

The Power Acoustik XPS-104 is a 4-inch midrange speaker designed for applications that require a compact form factor without compromising vocal clarity or mid-frequency strength. Designed within the XPS Series, this unit serves as a flexible drop-in upgrade for factory locations in doors, dashes, and rear decks, while also supporting custom component systems for full-spectrum sound performance.

With 300 watts peak handling, a 92 dB SPL, and a wide frequency response from 450 Hz to 10 kHz, the XPS‑104 bridges the tonal space between your tweeters and subwoofers, making it an essential part of any well-balanced car audio setup.

Midrange Precision for Clean Audio Reproduction

Midrange audio is where most vocals, instruments, and in-cabin dynamics live. The XPS-104 provides a defined output across the critical mid-frequencies without distortion or dead zones. It's engineered to serve in systems where coaxials fall short and dedicated midrange response is required.

Speaker Performance Specs:

• Size: 4″ round
• Impedance: 4 Ohms
• Power Handling: 60W RMS / 300W Peak
• Frequency Range: 450 Hz – 10 kHz
• Sensitivity: 92 dB SPL
• Voice Coil: 0.75″ high-temp configuration
• Magnet Structure: 15 oz ferrite
• Mounting Depth: 1.75″ (shallow profile)

Build Quality Optimized for Tight Installs

The sealed metal basket enables clean installation in tight spaces without rear wave interference, while the protective metal mesh grille helps prevent damage in exposed locations, such as UTVs or open-door car panels.

• High-temp coil for sustained output
• Rigid cone for accurate transient response
• Closed-back design for sealed enclosure compatibility
• Mesh grille included for protection

This structure makes it a match for tight-fitted OEM spots and aftermarket component setups where heat and vibration are consistent challenges.

Real-World Use Cases

The XPS‑104 is suitable for:

• Factory dash and door speaker upgrades
• Car component midrange builds
• UTV, ATV, and compact vehicle audio enhancements
• Mid-bass and vocal reinforcement in 3-way systems
• Tight-seal enclosures with limited air volume

Its sensitivity and impedance profile also ensure efficient integration with stock or aftermarket amplifiers without overpowering.
